AZ-104: Microsoft Azure Administrator
Your on-premises network contains an SMB share named Share1.
You have an Azure subscription that contains the following resources:
- A web app named webapp1
- A virtual network named VNET1
You need to ensure that webapp1 can connect to Share1.
What should you deploy?
an Azure Application Gateway
an Azure Active Directory (Azure AD) Application Proxy
an Azure Virtual Network Gateway
Answer is an Azure Virtual Network Gateway
A Site-to-Site VPN gateway connection can be used to connect your on-premises network to an Azure virtual network over an IPsec/IKE (IKEv1 or IKEv2) VPN tunnel. This type of connection requires a VPN device, a VPN gateway, located on-premises that has an externally facing public IP address assigned to it.
A: Application Gateway is for http, https and Websocket - Not SMB
B: Application Proxy is also for accessing web applications on-prem - Not SMB. Application Proxy is a feature of Azure AD that enables users to access on-premises web applications from a remote client.
Reference:
https://docs.microsoft.com/en-us/azure/vpn-gateway/vpn-gateway-howto-site-to-site-resource-manager-portal
You have an Azure subscription named Sub1.
You plan to deploy a multi-tiered application that will contain the tiers shown in the following table.
You need to recommend a networking solution to meet the following requirements:
- Ensure that communication between the web servers and the business logic tier spreads equally across the virtual machines.
- Protect the web servers from SQL injection attacks.
Which Azure resource should you recommend for each requirement?
Box 1: an internal load balancer
Azure Internal Load Balancer (ILB) provides network load balancing between virtual machines that reside inside a cloud service or a virtual network with a regional scope.
Box 2: an application gateway that uses the WAF tier
Azure Web Application Firewall (WAF) on Azure Application Gateway provides centralized protection of your web applications from common exploits and vulnerabilities. Web applications are increasingly targeted by malicious attacks that exploit commonly known vulnerabilities. Application gateway which uses WAF tier.
Reference:
https://docs.microsoft.com/en-us/azure/web-application-firewall/ag/ag-overview
Your company has three offices. The offices are located in Miami, Los Angeles, and New York. Each office contains datacenter.
You have an Azure subscription that contains resources in the East US and West US Azure regions. Each region contains a virtual network. The virtual networks are peered.
You need to connect the datacenters to the subscription. The solution must minimize network latency between the datacenters.
What should you create?
three Azure Application Gateways and one On-premises data gateway
three virtual hubs and one virtual WAN
three virtual WANs and one virtual hub
three On-premises data gateways and one Azure Application Gateway
Answer is three virtual WANs and one virtual hub
There can only be one hub per Azure region.
It should be 2 Virtual Hubs and 1 WAN.
Since we have just two region, it may be impossible to have 3 hubs.
Reference:
https://docs.microsoft.com/en-us/azure/virtual-wan/virtual-wan-about
You plan to deploy five virtual machines to a virtual network subnet.
Each virtual machine will have a public IP address and a private IP address.
Each virtual machine requires the same inbound and outbound security rules.
What is the minimum number of network interfaces and network security groups that you require?
Box 1: 5
A public and a private IP address can be assigned to a single network interface.
By default a NIC is associated to one IP address. Anyway nothing prevents a NIC to have MORE THAN ONE IP address. So to the VM's NIC, you can associate the public and the private IP at the same time. You are not forced to have one NIC for the public IP and one NIC for the private IP.
Box 2: 1
You can associate zero, or one, network security group to each virtual network subnet and network interface in a virtual machine. The same network security group can be associated to as many subnets and network interfaces as you choose.
Reference:
https://docs.microsoft.com/en-us/azure/virtual-network/virtual-network-network-interface-addresses
You have an Azure virtual network named VNet1 that connects to your on-premises network by using a site-to-site VPN. VNet1 contains one subnet named Subnet1.
Subnet1 is associated to a network security group (NSG) named NSG1. Subnet1 contains a basic internal load balancer named ILB1. ILB1 has three Azure virtual machines in the backend pool.
You need to collect data about the IP addresses that connects to ILB1. You must be able to run interactive queries from the Azure portal against the collected data.
What should you do?
Box 1: An Azure Log Analytics workspace
In the Azure portal you can set up a Log Analytics workspace, which is a unique Log Analytics environment with its own data repository, data sources, and solutions.
Box 2: NSG1
NSG flow logs allow viewing information about ingress and egress IP traffic through a Network security group. Through this, the IP addresses that connect to the ILB can be monitored when the diagnostics are enabled on a Network Security Group.
We cannot enable diagnostics on an internal load balancer to check for the IP addresses.
As for Internal LB, it is basic one. Basic can only connect to storage account. Also, Basic LB has only activity logs, which doesn't include the connectivity workflow. So, we need to use NSG to meet the mentioned requirements.
Reference:
https://docs.microsoft.com/en-us/azure/log-analytics/log-analytics-quick-create-workspace
https://docs.microsoft.com/en-us/azure/load-balancer/load-balancer-standard-diagnostics

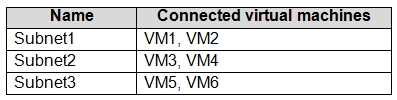

You have an Azure subscription that contains a virtual network named VNET1. VNET1 contains the subnets shown in the following table.
Each virtual machine uses a static IP address.
You need to create network security groups (NSGs) to meet following requirements:
- Allow web requests from the internet to VM3, VM4, VM5, and VM6.
- Allow all connections between VM1 and VM2.
- Allow Remote Desktop connections to VM1.
- Prevent all other network traffic to VNET1.
What is the minimum number of NSGs you should create?
1
3
4
12
Answer is 1
NSGs can be associated to subnets, individual VMs (classic), or individual network interfaces (NIC) attached to VMs (Resource Manager). You can associate zero, or one, NSG(s) to each VNet subnet and NIC in a virtual machine. The same NSG can be associated to as many subnets and NICs as you choose.
So, you can create 1 NSG and associate it with all 3 Subnets.
- Allow web requests from internet to VM3, VM4, VM5 and VM 6: You need to add an inbound rule to allow Internet TCP 80 to VM3, VM4, VM5 and VM6 static IP addresses.
- Allow all connections between VM1 & VM2: You do not need an NSG as communication in the same VNet is allowed by default, without even configuring NSG.
- Allow remote desktop to VM1: You need to add an inbound rule to allow RDP 3389 in VM1’s static IP address.
- Prevent all other network traffic to VNET1: You do not need to configure any NSG as the there is explicit deny rule (DenyAllInbound) in every NSG.
Reference:
https://docs.microsoft.com/en-us/azure/virtual-network/security-overview#default-security-rules
You have an Azure subscription that contains the resources in the following table.
VM1 and VM2 are deployed from the same template and host line-of-business applications.

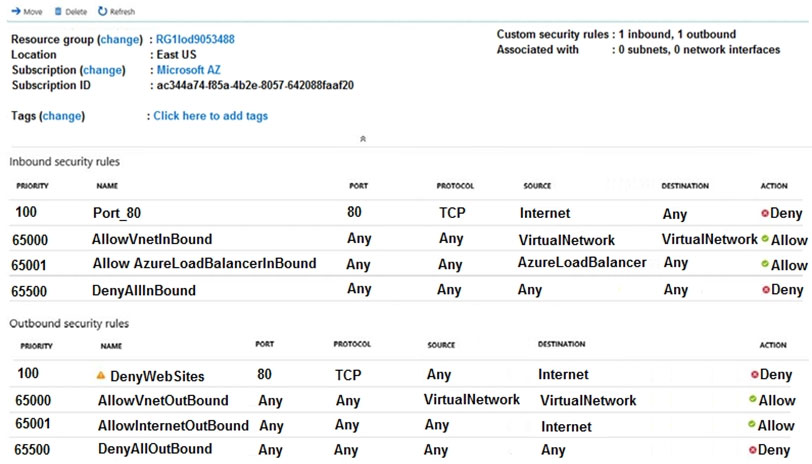

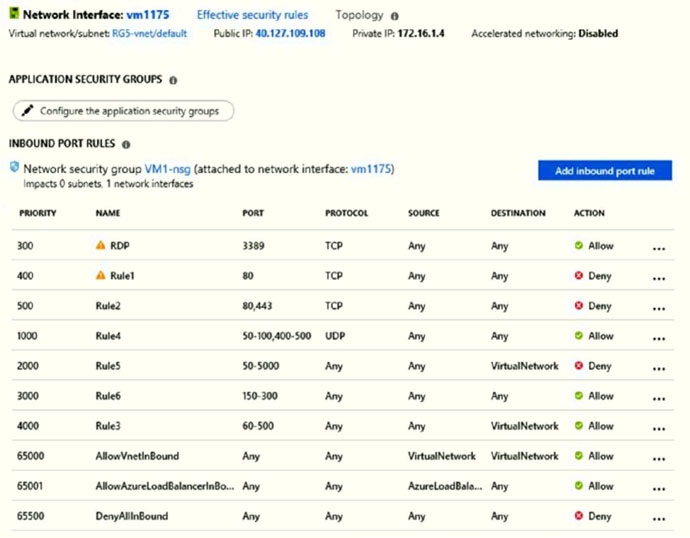

You configure the network security group (NSG) shown in the exhibit.
You need to prevent users of VM1 and VM2 from accessing websites on the Internet over TCP port 80.
What should you do?
Disassociate the NSG from a network interface
Change the Port_80 inbound security rule.
Associate the NSG to Subnet1.
Change the DenyWebSites outbound security rule.
Answer is Associate the NSG to Subnet1.
Outbound rule “DenyWebSites” is setup correctly to block outbound internet traffic over port 80. In the screenshot it states, "Associated with: 0 subnets, 0 NIC's", so you need to associate the NSG to Subnet1.You can associate or dissociate a network security group from a NIC or Subnet.
You can associate or dissociate a network security group from a network interface or subnet.
The NSG has the appropriate rule to block users from accessing the Internet. We just need to associate it with Subnet1.
Reference:
https://docs.microsoft.com/en-us/azure/virtual-network/manage-network-security-group
You have the Azure virtual machines shown in the following table.
A DNS service is installed on VM1.

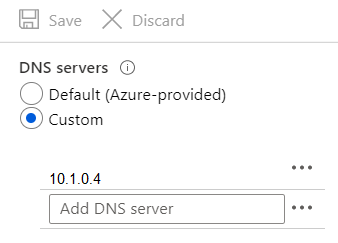

You configure the DNS servers settings for each virtual network as shown in the following exhibit.
You need to ensure that all the virtual machines can resolve DNS names by using the DNS service on VM1.
What should you do?
Configure a conditional forwarder on VM1
Add service endpoints on VNET1
Add service endpoints on VNET2 and VNET3
Configure peering between VNET1, VNET2, and VNET3
Answer is Configure peering between VNET1, VNET2, and VNET3
Use Virtual network peering to connect virtual networks to be able to connect to other VMs in different VNETs. Virtual network peering enables you to seamlessly connect networks in Azure Virtual Network. The virtual networks appear as one for connectivity purposes. The traffic between virtual machines uses the Microsoft backbone infrastructure.
B, C: Virtual Network (VNet) service endpoint provides secure and direct connectivity to Azure services over an optimized route over the Azure backbone network. Endpoints allow you to secure your critical Azure service resources to only your virtual networks. Service Endpoints enables private IP addresses in the VNet to reach the endpoint of an Azure service without needing a public IP address on the VNet.
Reference:
https://docs.microsoft.com/en-us/azure/virtual-network/virtual-network-service-endpoints-overview
https://docs.microsoft.com/en-us/azure/virtual-network/virtual-network-peering-overview
You have an Azure subscription named Subscription1 that contains an Azure virtual network named VNet1. VNet1 connects to your on-premises network by using Azure ExpressRoute.
You plan to prepare the environment for automatic failover in case of ExpressRoute failure.
You need to connect VNet1 to the on-premises network by using a site-to-site VPN. The solution must minimize cost.
Which three actions should you perform?
Create a connection
Create a local site VPN gateway
Create a VPN gateway that uses the VpnGw1 SKU
Create a gateway subnet
Create a VPN gateway that uses the Basic SKU
Answer is A-B-C
For a site to site VPN, you need:
- a local gateway
- a gateway subnet
- a VPN gateway
- a connection to connect the local gateway and the VPN gateway
However, the question states that VNet1 connects to your on-premises network by using Azure ExpressRoute. For an ExpressRoute connection, VNET1 must already be configured with a gateway subnet so we don't need another one.
Note: BasicSKU cannot coexist with ExpressRoute. You must use a non-Basic SKU gateway for both the ExpressRoute gateway and the VPN gateway.
Reference:
https://docs.microsoft.com/en-us/azure/vpn-gateway/vpn-gateway-howto-site-to-site-resource-manager-portal
https://azure.microsoft.com/es-es/pricing/details/vpn-gateway

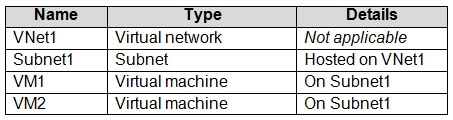

You have an Azure virtual machine named VM1 that connects to a virtual network named VNet1. VM1 has the following configurations:
- Subnet: 10.0.0.0/24
- Availability set: AVSet
- Network security group (NSG): None
- Private IP address: 10.0.0.4 (dynamic)
- Public IP address: 40.90.219.6 (dynamic)
You deploy a standard, Internet-facing load balancer named slb1.
You need to configure slb1 to allow connectivity to VM1.
Which changes should you apply to VM1 as you configure slb1?

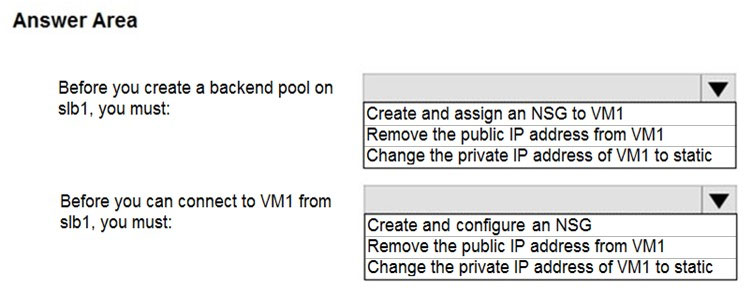

Box 1: Remove the public IP address from VM1
Note: A public load balancer can provide outbound connections for virtual machines (VMs) inside your virtual network. These connections are accomplished by translating their private IP addresses to public IP addresses. Public Load Balancers are used to load balance internet traffic to your VMs. Load balancer and the public IP address SKU must match when you use them with public IP addresses. Only Basic SKU IPs work with the Basic SKU load balancer and only Standard SKU IPs work with Standard SKU load balancers.
Box 2: Create and configure an NSG
NSGs are used to explicitly permit allowed traffic. If you do not have an NSG on a subnet or NIC of your virtual machine resource, traffic is not allowed to reach this resource.
Note: You can only attach virtual machines that are in the same location and on the same virtual network as the LB. Also, when adding them to a backend pool, it doesn’t matter in which status are the VMs.
Reference:
https://docs.microsoft.com/en-us/azure/aks/load-balancer-standard
https://docs.microsoft.com/en-us/azure/virtual-network/public-ip-addresses
https://stackoverflow.com/questions/52882024/cannot-add-vm-to-standard-azure-load-balancer
https://docs.microsoft.com/en-us/azure/load-balancer/skus
https://docs.microsoft.com/en-us/azure/load-balancer/backend-pool-management
