MD-102: Endpoint Administrator Associate
Overview ADatum Corporation is a consulting company that has a main office in Montreal and branch offices in Seattle and New York.
ADatum has a Microsoft 365 E5 subscription.
Environment
Network Environment
The network contains an on-premises Active Directory domain named adatum.com. The domain contains the servers shown in the following table.
ADatum has a hybrid Azure AD tenant named adatum.com.
Users and Groups
The adatum.com tenant contains the users shown in the following table.
All users are assigned a Microsoft Office 365 license and an Enterprise Mobility + Security E3 license.
Enterprise State Roaming is enabled for Group1 and GroupA.
Group1 and Group2 have a Membership type of Assigned.
Devices
ADatum has the Windows 10 devices shown in the following table.
The Windows 10 devices are joined to Azure AD and enrolled in Microsoft Intune.
The Windows 10 devices are configured as shown in the following table.
All the Azure AD joined devices have an executable file named C:AppA.exe and a folder named D:Folder1.
Microsoft Intune Configuration
Microsoft Intune has the compliance policies shown in the following table.
The Automatic Enrollment settings have the following configurations:
MDM user scope: GroupA
MAM user scope: GroupB
You have an Endpoint protection configuration profile that has the following Controlled folder access settings:
Name: Protection1
Folder protection: Enable
List of apps that have access to protected folders: C:*AppA.exe
List of additional folders that need to be protected: D:Folder1
Assignments:
Included groups: Group2, GroupB
Windows Autopilot Configuration
ADatum has a Windows Autopilot deployment profile configured as shown in the following exhibit.
Currently, there are no devices deployed by using Windows Autopilot.
The Intune connector for Active Directory is installed on Server1.
Requirements
Planned Changes
ADatum plans to implement the following changes:
Purchase a new Windows 10 device named Device6 and enroll the device in Intune
New computers will be deployed by using Windows Autopilot and will be hybrid Azure AD joined.
Deployed a network boundary configuration profile that will have the following settings:
Name: Boundary1
Network boundary: 192.168.1.0/24
Scope tags: Tag1
Assignments:
Included groups: Group1, Group2
Deploy two VPN configuration profiles named Connection1 and Connection2 that will have the following settings:
Name: Connection1
Connection name: VPN1
Connection type: L2TP
Assignments:
Included groups: Group1, Group2, GroupA
Excluded groups: --
Name: Connection2
zConnection name: VPN2
Connection type: IKEv2
Assignments:
Included groups: GroupA
Excluded groups: GroupB
Technical Requirements
ADatum must meet the following technical requirements:
Users in GroupA must be able to deploy new computers.
Administrative effort must be minimized.

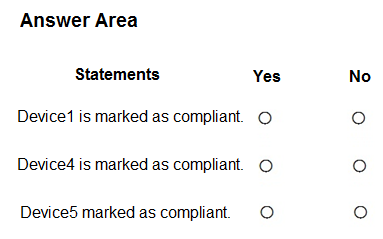

For each of the following statements, select Yes if the statement is true. Otherwise, select No.
Check the answer section
Answer is No, No, Yes
device1: bitlocker Y, secureboot N Device1: group1 group1: policy1 & policy2 compliance policies settings: Policy1: require bitlocker Only Policy2: requere secure boot only mark device with no complience policy as Compliant Device1 : Not Compliant Device4: bitlocker N, secureboot Y Device4: group2 group2: policy3 compliance policies settings: Policy3: require bitlocker & secureboot mark device with no complience policy as Compliant Device4 : Not compliance Device5: bitlocker Y, secureboot N Device5: group3 Policy3: group2 Policy3: require bitlocker & secureboot compliance policy: mark device with no complience as Complient Device5 : compliance
Overview ADatum Corporation is a consulting company that has a main office in Montreal and branch offices in Seattle and New York.
ADatum has a Microsoft 365 E5 subscription.
Environment
Network Environment
The network contains an on-premises Active Directory domain named adatum.com. The domain contains the servers shown in the following table.
ADatum has a hybrid Azure AD tenant named adatum.com.
Users and Groups
The adatum.com tenant contains the users shown in the following table.
All users are assigned a Microsoft Office 365 license and an Enterprise Mobility + Security E3 license.
Enterprise State Roaming is enabled for Group1 and GroupA.
Group1 and Group2 have a Membership type of Assigned.
Devices
ADatum has the Windows 10 devices shown in the following table.
The Windows 10 devices are joined to Azure AD and enrolled in Microsoft Intune.
The Windows 10 devices are configured as shown in the following table.
All the Azure AD joined devices have an executable file named C:AppA.exe and a folder named D:Folder1.
Microsoft Intune Configuration
Microsoft Intune has the compliance policies shown in the following table.
The Automatic Enrollment settings have the following configurations:
MDM user scope: GroupA
MAM user scope: GroupB
You have an Endpoint protection configuration profile that has the following Controlled folder access settings:
Name: Protection1
Folder protection: Enable
List of apps that have access to protected folders: C:*AppA.exe
List of additional folders that need to be protected: D:Folder1
Assignments:
Included groups: Group2, GroupB
Windows Autopilot Configuration
ADatum has a Windows Autopilot deployment profile configured as shown in the following exhibit.
Currently, there are no devices deployed by using Windows Autopilot.
The Intune connector for Active Directory is installed on Server1.
Requirements
Planned Changes
ADatum plans to implement the following changes:
Purchase a new Windows 10 device named Device6 and enroll the device in Intune
New computers will be deployed by using Windows Autopilot and will be hybrid Azure AD joined.
Deployed a network boundary configuration profile that will have the following settings:
Name: Boundary1
Network boundary: 192.168.1.0/24
Scope tags: Tag1
Assignments:
Included groups: Group1, Group2
Deploy two VPN configuration profiles named Connection1 and Connection2 that will have the following settings:
Name: Connection1
Connection name: VPN1
Connection type: L2TP
Assignments:
Included groups: Group1, Group2, GroupA
Excluded groups: --
Name: Connection2
zConnection name: VPN2
Connection type: IKEv2
Assignments:
Included groups: GroupA
Excluded groups: GroupB
Technical Requirements
ADatum must meet the following technical requirements:
Users in GroupA must be able to deploy new computers.
Administrative effort must be minimized.
You implement Boundary1 based on the planned changes.
Which devices have a network boundary of 192.168.1.0/24 applied?
Device2 only
Device3 only
Device1, Device2, and Device5 only
Device1, Device2, Device3, and Device4 only
Answer is Device1, Device2, Device3, and Device4 only
Both Personal and Corporate devices can be enrolled to Intune, the network boundary can be assigned to enrolled Windows 10/11 devices.
The Boundary is assigned to Group 1 & 2, Devices 1,2,3 and 4 have membership to these groups. Device 5 is not part of the membership for Group 1 & 2 so doesnt receive the policy.
Reference:
https://learn.microsoft.com/en-us/mem/intune/configuration/network-boundary-windows
